ADVANCED HEAT TRANSFER TECHNOLOGY

Coaxial Heat Exchanger

Tershion Machinery is a professional thermal equipment manufacturer. We specialize in the coaxial heat exchanger for efficient fluid processing. This tube-in-tube design handles high pressure and temperature. It ensures stable performance for various industrial applications.

✔ Compact Tube-in-Tube

✔ High Pressure Rated

✔ Reliable Operation

Get Instant Quote Chat on WhatsApp

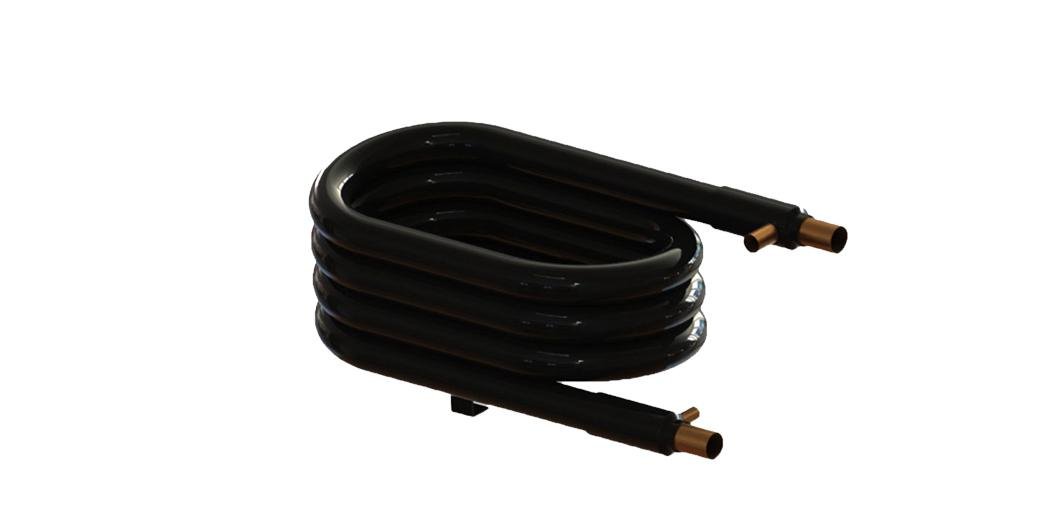

coaxial heat exchanger tube in tube industrial heat transfer equipment

Coaxial Heat Exchanger Specifications

Technical parameters, materials & industrial applications

HX-C-34 Coaxial Heat Exchanger
Material	Carbon Steel / SS304 / SS316L / Titanium / Copper
Tube Thickness	1.5 – 3.0 mm
Structure	Tube-in-Tube (Straight / Spiral)
Connection Size	DN20 – DN300
Nozzle	Welded Carbon Steel / Stainless Steel
Frame	Carbon Steel / Stainless Steel Casing
Applications	Heat Pump, HVAC, Industrial Cooling, Energy Recovery Systems
Inspection	✔ Pressure Test ✔ Weld Inspection

Performance & Configuration
Product Type	Coaxial Heat Exchanger
Core Advantages	High Efficiency Corrosion Resistant Compact Design Easy Maintenance
Flow Velocity	1.0 – 5.0 m/s
Max Pressure	≤ 4.0 MPa
Voltage	220 / 380 / 440 V (Optional)
Core Components	Inner Tube, Outer Tube, End Caps, Flanges, Supports
Certification	ISO 9001 / CE / ASME / PED (Optional)
Inspection	✔ Mechanical Test Report ✔ Factory Inspection Video

Coaxial heat exchangers are widely used in heat pump and chiller systems for efficient and stable heat transfer. We strictly follow ASME engineering standards during manufacturing to ensure reliable performance, operational safety, and long-term durability.

Explore our industrial applications & project insights to see how coaxial heat exchangers perform in real-world systems.

Our engineering team provides customized solutions based on your operating conditions. We help you select the most suitable materials and configurations according to your working medium, temperature, pressure, and installation environment.

Applications

The coaxial heat exchanger is widely used in heat pump and HVAC systems, delivering stable performance in high-pressure applications.

Chillers

Air-Cooled Heat Pumps

Water-Cooled Heat Pumps

Water-Source Systems

Ground-Source Systems

Heat Recovery Units

Key Features

Engineered for efficiency and durability, the coaxial heat exchanger ensures reliable operation with minimal maintenance.

Anti-Freezing Design

Self-Cleaning Flow

Low Fouling

Reduced Clogging

High Pressure Rated

Fewer Weld Joints
