ADVANCED HEAT TRANSFER TECHNOLOGY

Finned Heat Exchanger

Tershion Machinery is a professional thermal equipment supplier. We offer the finned heat exchanger for various industrial cooling needs. This system provides a larger surface area for heat transfer. It ensures reliable performance in diverse environments.

✔ Large Heat Transfer Area

✔ Air Cooling Efficiency

✔ Durable Structure

Get Instant Quote Chat on WhatsApp

Finned Heat Exchanger Specifications

Engineering parameters, materials & refrigeration applications

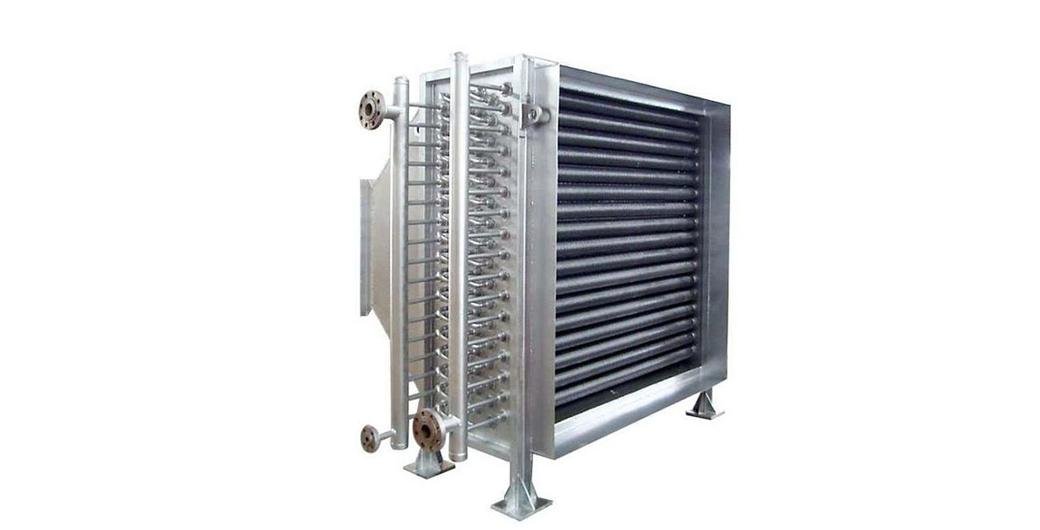

HX-F-31 Finned Heat Exchanger
Application	Refrigeration Components
System	Cooling System
Tube Diameter	5 / 7 / 7.94 / 9.52 / 11.5 / 12.7 / 14.3 / 15 mm
Material	Aluminum Fins + Copper Tubes
Usage	Display Cabinets, Ice Makers, Vending Machines, Ice Cream Machines, Air Curtain Cabinets
Applicable Industries	Food & Beverage, Retail, Manufacturing, Construction, Energy & Mining
Condition	New
Inspection	✔ Machinery Test Report ✔ Video Factory Inspection

Performance & Configuration
Structure	Finned Tube (Straight / Corrugated / Serrated)
Core Components	Tube Bundle, Header, Fan, Motor, Control System
Voltage	220 / 380 / 440 V (Customizable)
Fluid Velocity	1.0 – 5.0 m/s
Max Working Pressure	≤ 4.0 MPa
Tube Materials	Carbon Steel / Stainless Steel / Copper / Titanium
Wall Thickness	0.8 – 3.0 mm
Connection Size	DN25 – DN500
Certification	ISO 9001 / CE / ASME / PED (Optional)
Inspection	✔ Mechanical Test Report ✔ Factory Inspection Video

Finned heat exchangers are widely used for gas and liquid cooling in industrial applications such as refrigeration, HVAC systems, and process cooling. We strictly follow ASME engineering standards during manufacturing to ensure reliable performance, operational safety, and long-term durability.

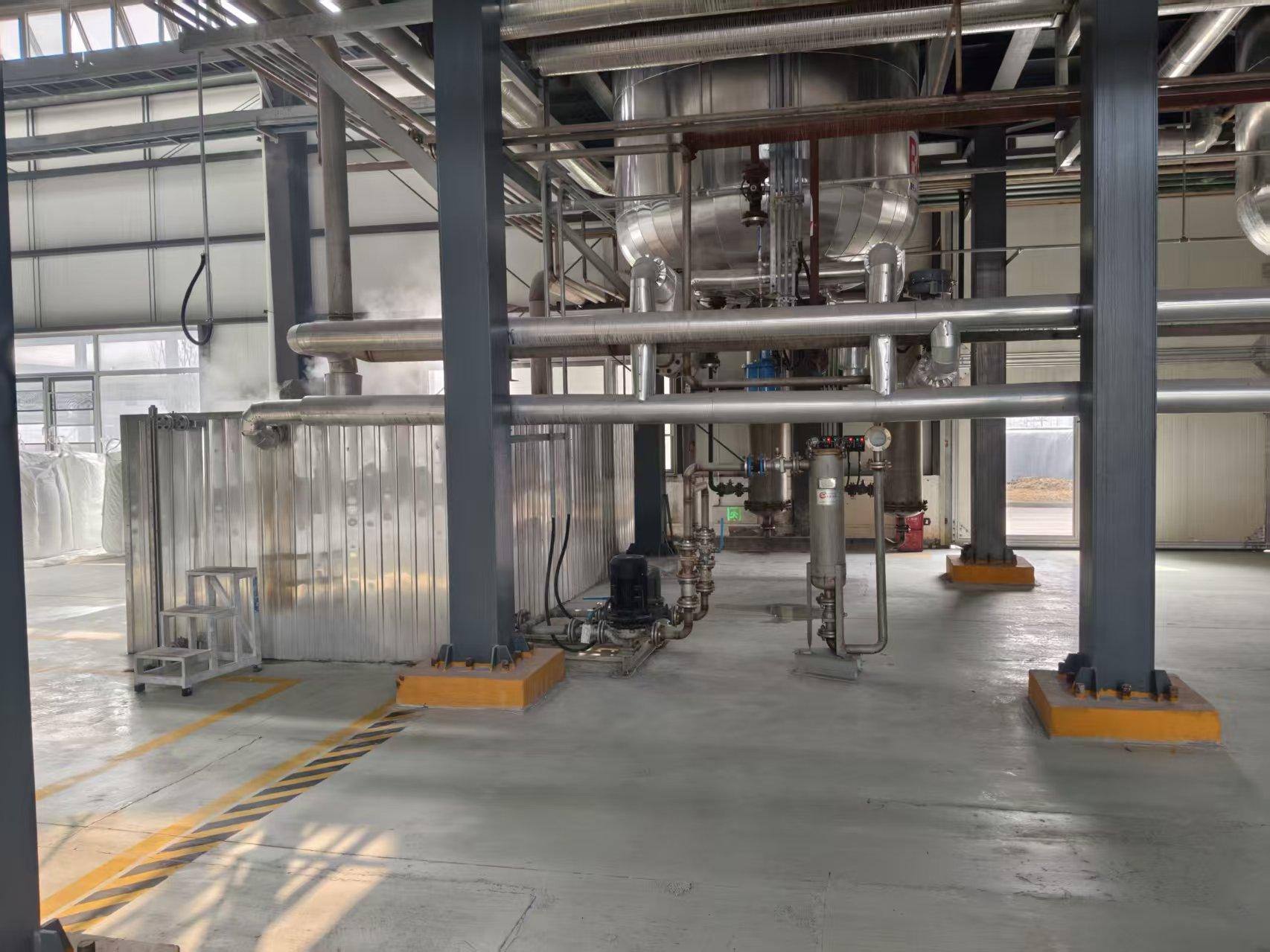

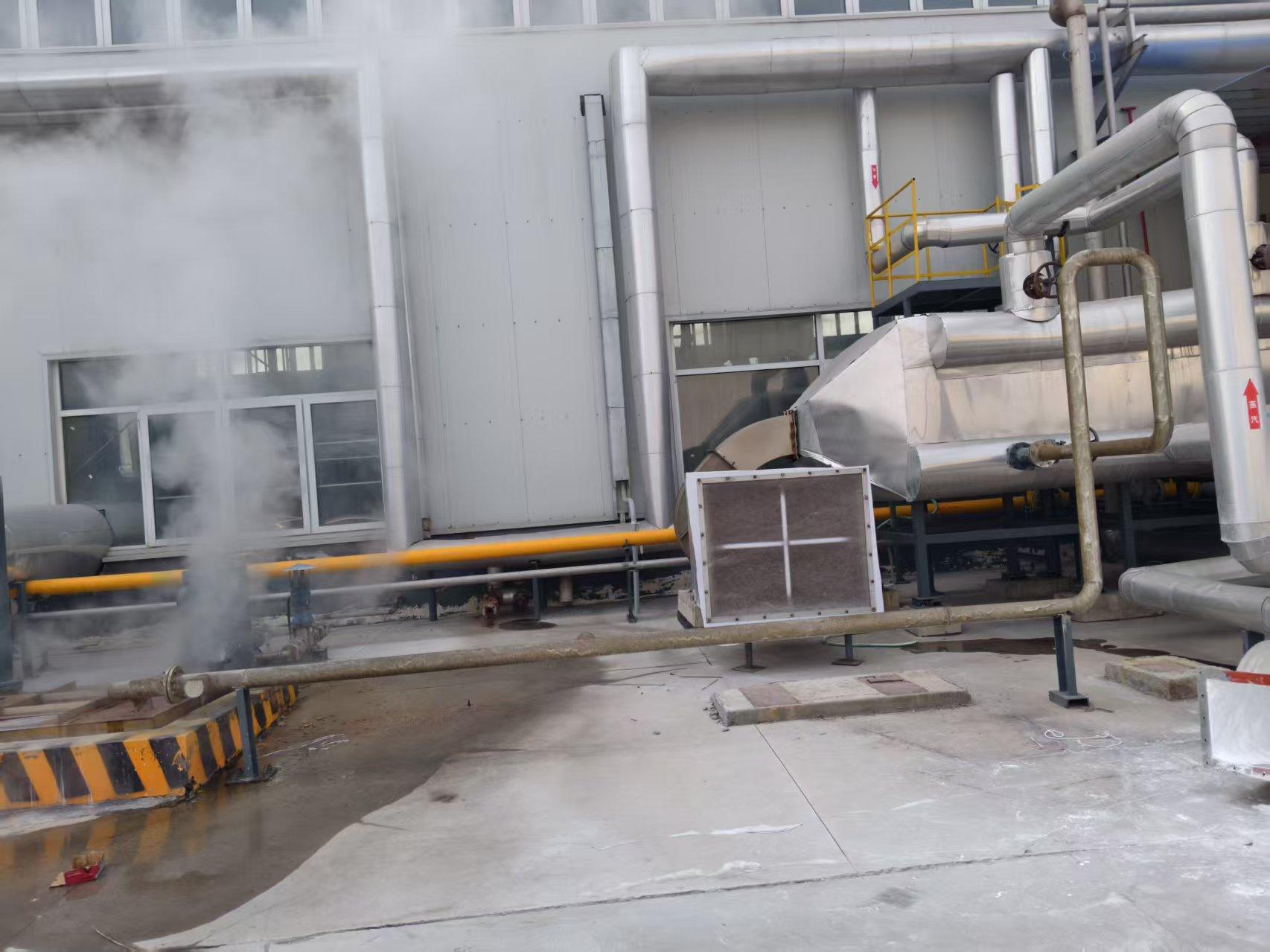

Explore our industrial applications & project insights to learn how our equipment performs in real-world projects.

Our engineering team provides customized solutions based on your operating conditions. We help you select the most suitable materials and configurations according to your working medium, temperature, pressure, and installation environment.

Finned Heat Exchanger Design & Structure

The finned heat exchanger is designed with extended surface tubes to improve heat transfer efficiency. It is widely used in air cooling systems for industrial applications.
