CHEMICAL PROCESS CASE STUDY

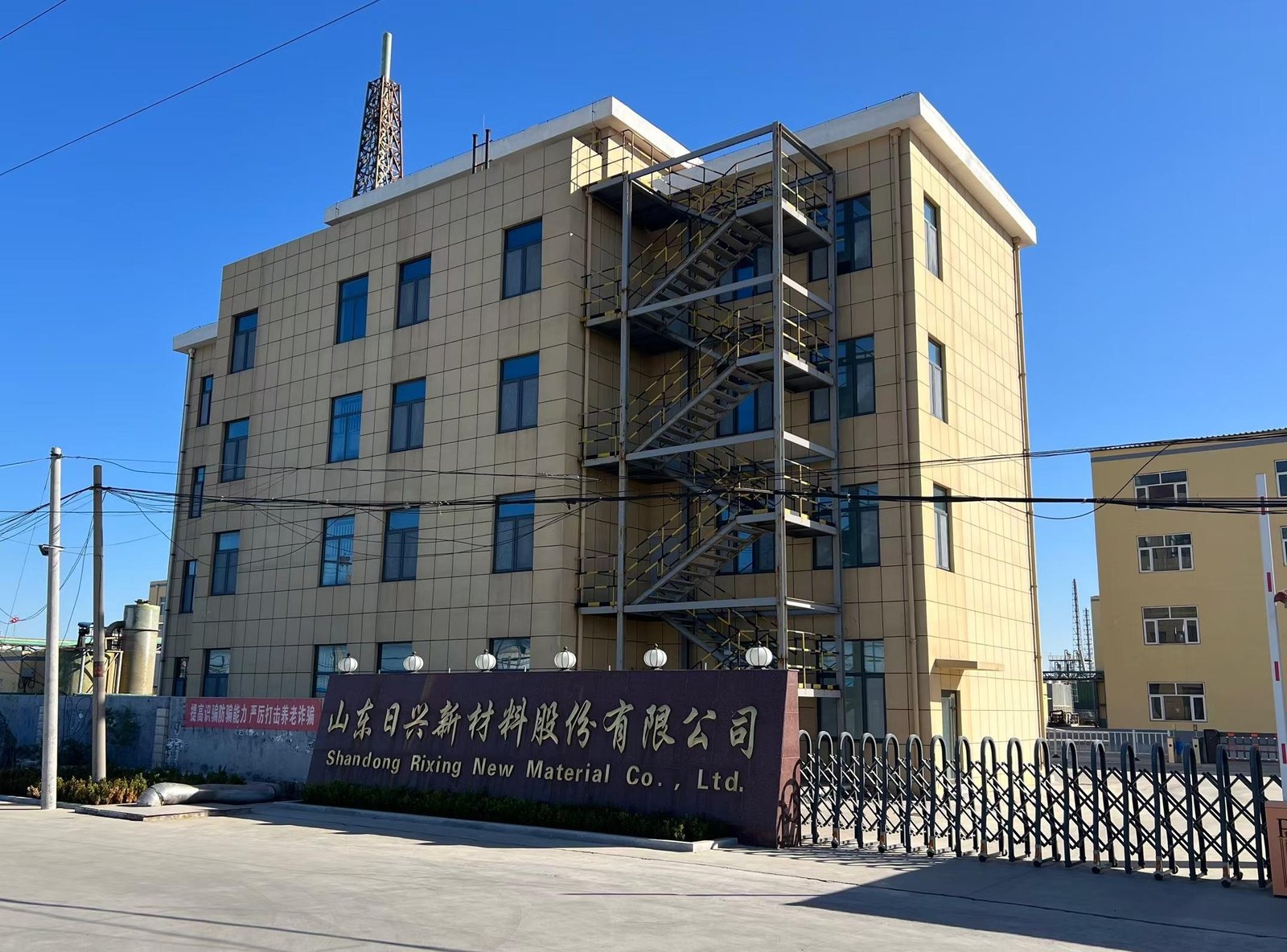

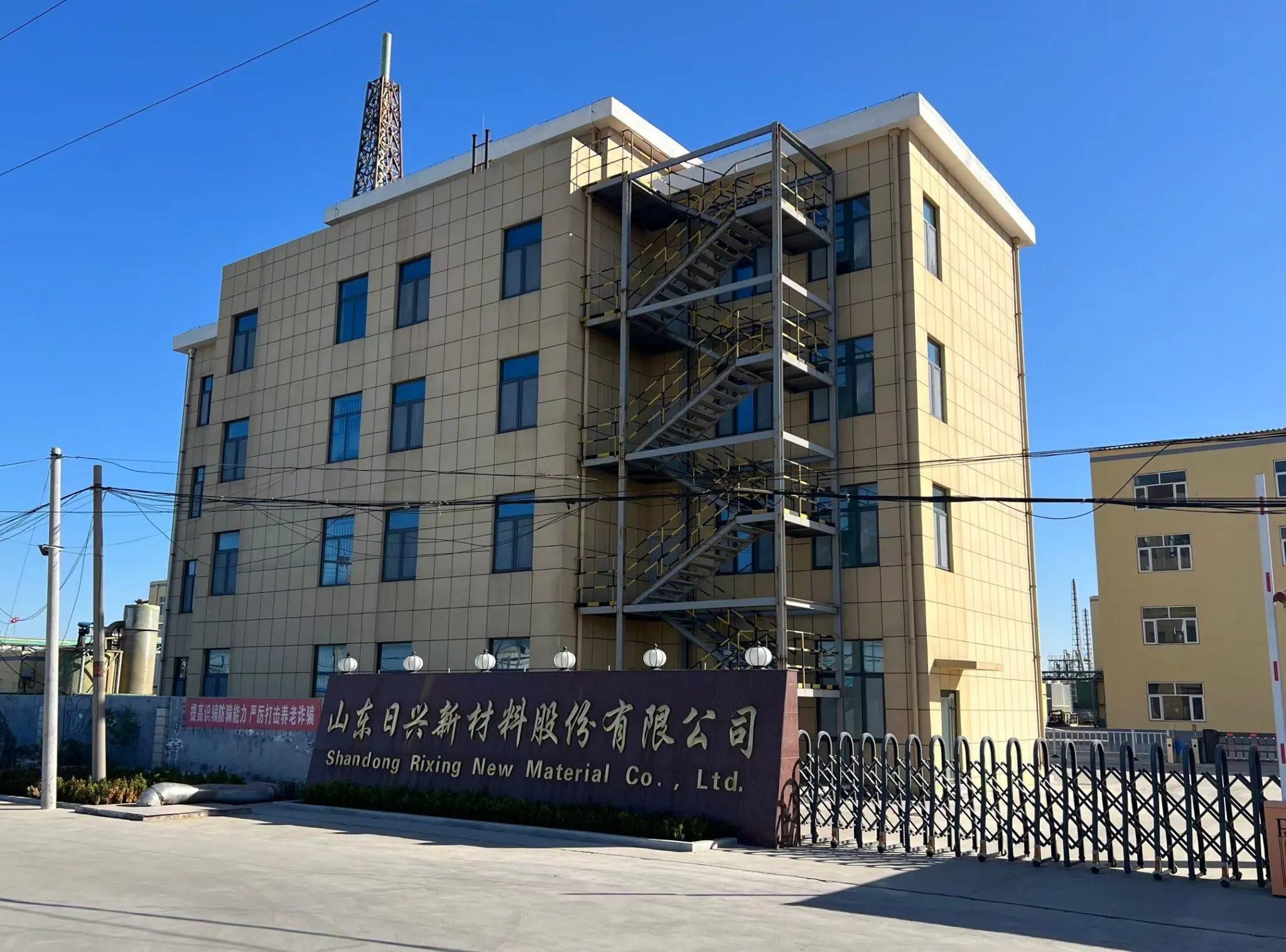

Plate Heat Exchangers for Bromide Production Three-Effect Evaporation System – Rixing New Materials
Custom-engineered multi-effect evaporation system for bromide (NaBr / KBr / CaBr) production, integrating industrial plate heat exchangers to improve thermal efficiency, reduce steam consumption, and ensure stable continuous operation under corrosive conditions.
15,000
TPA Capacity
3-Effect
Evaporation System
Steam↓
Consumption Reduced
Stable
Continuous Operation
Project Overview
Industry: Fine Chemicals – Bromide (NaBr, KBr, CaBr)
Process: Separation & Concentration

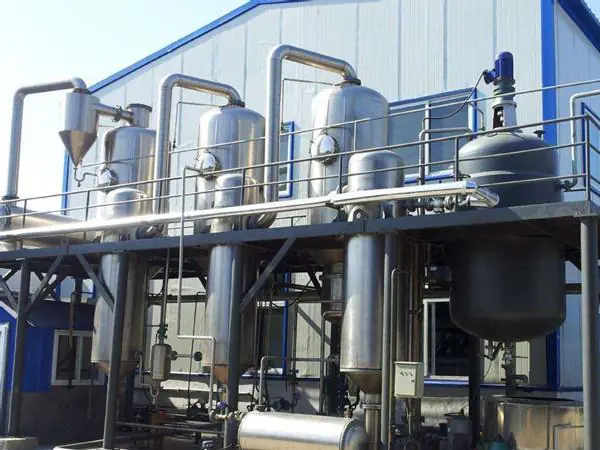

System: Three-effect evaporation system
Process: Separation & Concentration
System: Three-effect evaporation system
The client required a corrosion-resistant and energy-efficient evaporation system to replace conventional high-steam consumption processes.
Engineering Solution
We designed and delivered a complete three-effect evaporation system integrating industrial plate heat exchangers for optimized heat recovery and reduced energy consumption.
Reboilers
6 UnitsEvaporators
6 UnitsPreheaters
2 UnitsEconomizers
3 UnitsHeat Recovery
Plate HX IntegrationSystem Implementation
Project Results
The system has been successfully commissioned and is operating under stable conditions.
- 15,000 tons/year bromide production achieved
- Significant steam consumption reduction
- Improved concentration stability
- Enhanced automation and reliability
- Lower maintenance and scaling issues
